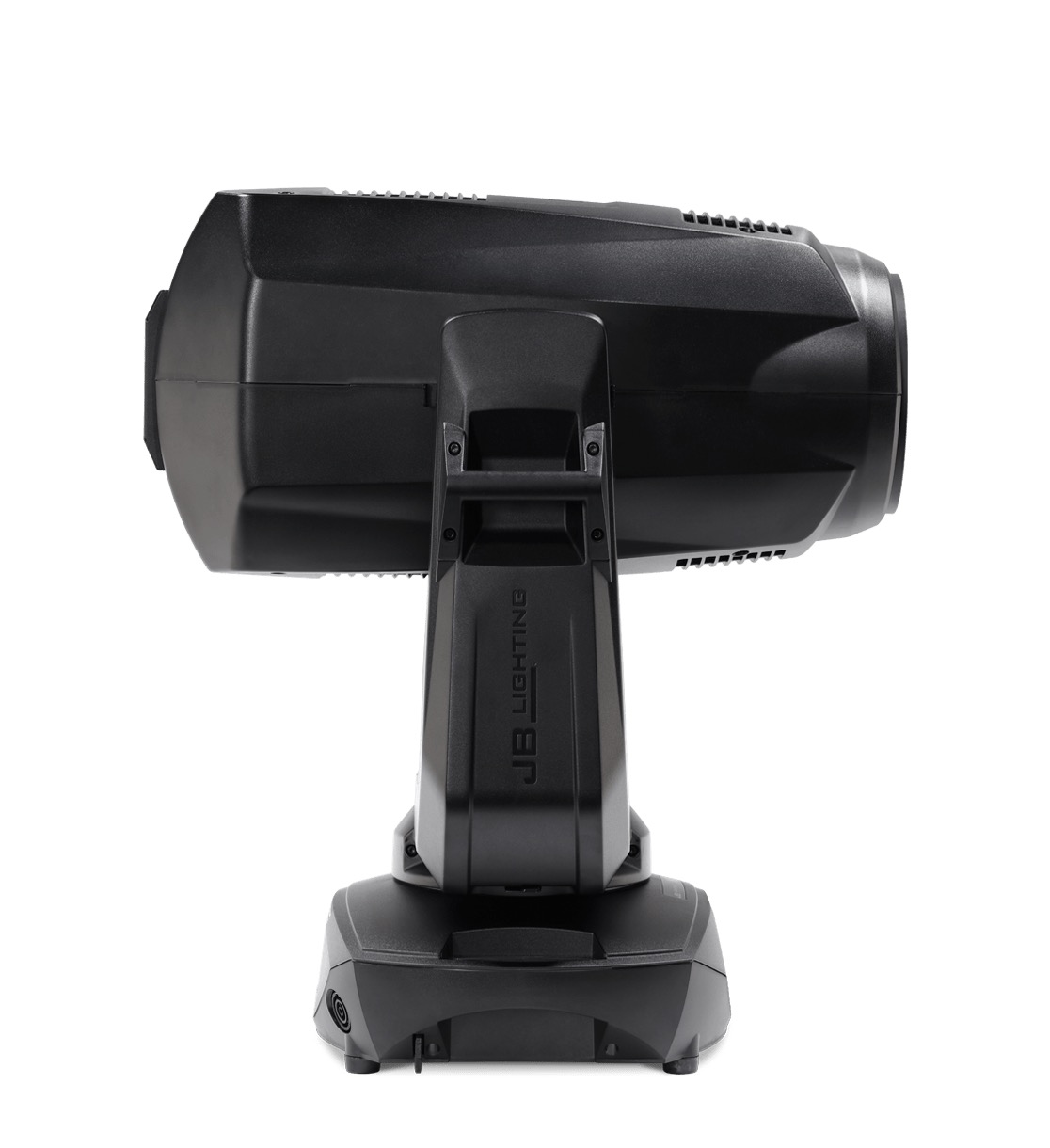

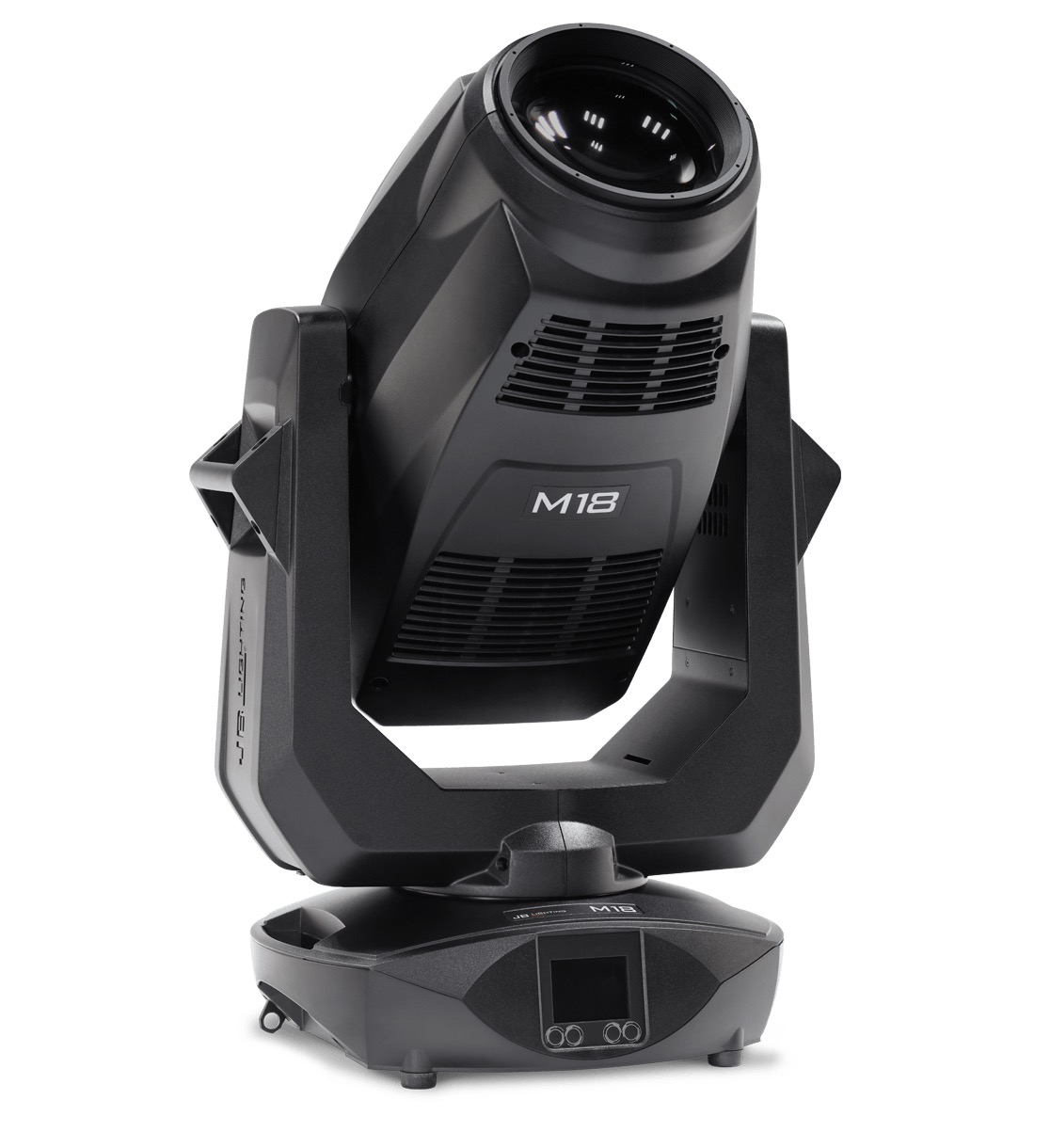

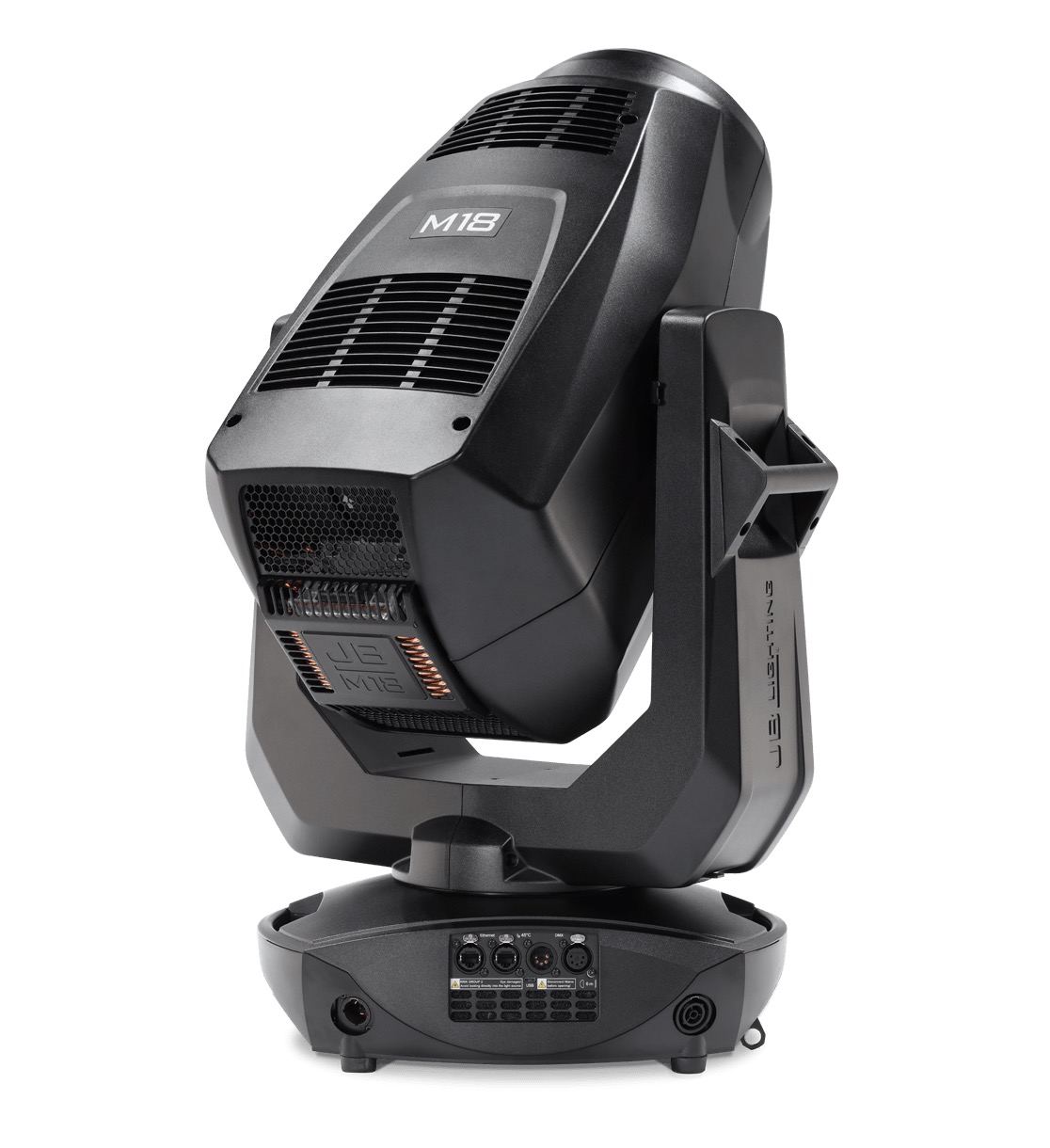

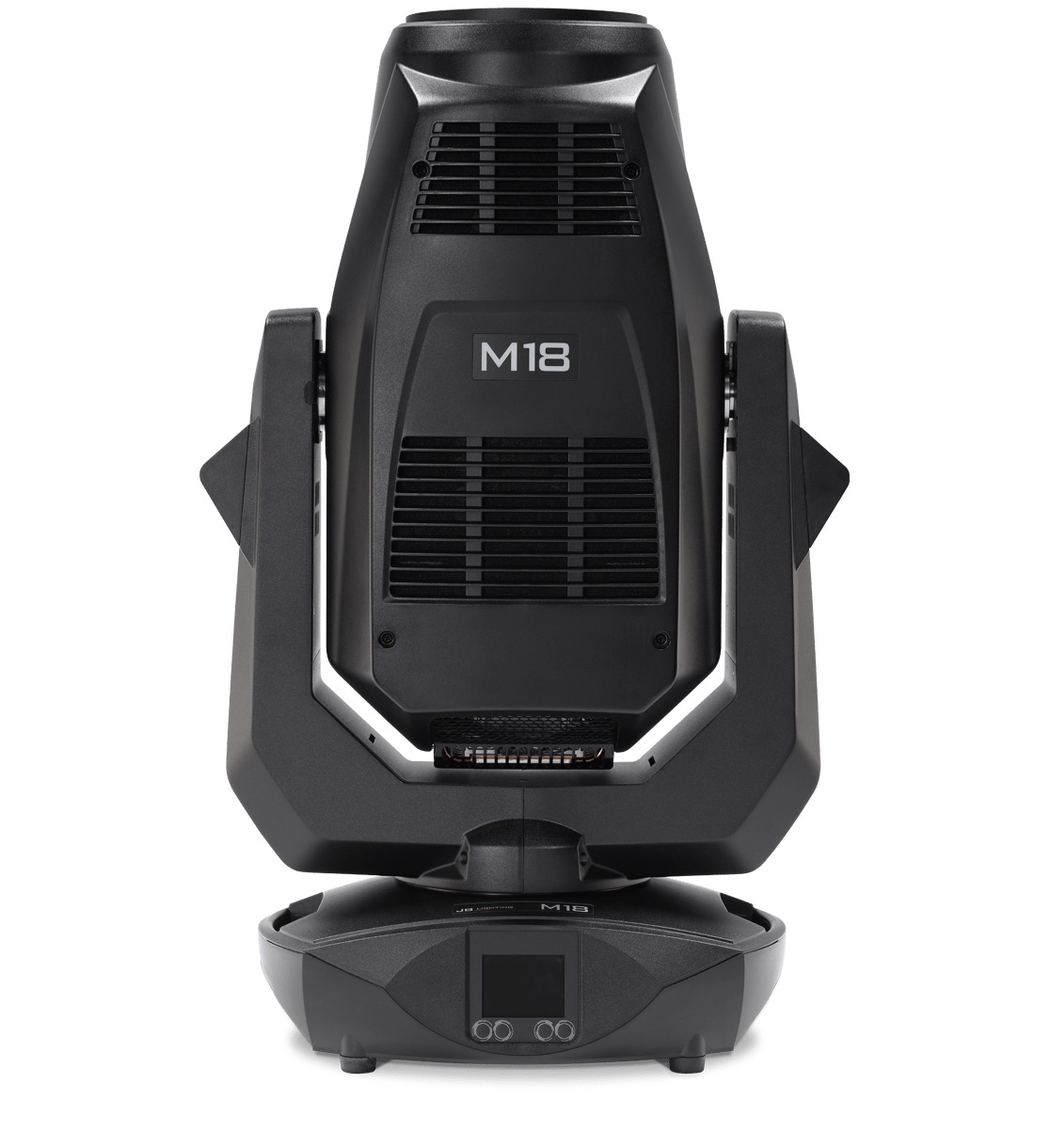

M18

Profile

The M18 is a premium spotlight with 1,200W multispectral LED for particularly color-intense applications in theatre, opera, drama, TV and trade fair. Thanks to its immense luminosity (e.g. 25,000 lm output at 5600 K), it provides breathtakingly bright light projections even from a great distance.

The M18 equipment package is also impressive and leaves nothing to be desired: including 14 projection gobos, a fully-fledged animation wheel, 2 prisms, 2 frost filters and a 130° rotatable framing module.

Impressive in every respect

M18 Profile

Impressive in every respect

.....Just WOW

01 / 04

  • 7 RGBW high-performance LEDs of 40 W each, up to 3,500 lm output

  • > 20.000 h life time

  • Flicker-free operation, camera mode: 100, 120 and 600 Hz

  • Zoom range 2.3° – 55° (1:23.9), 2,3° – 33° at ½ peak; 4,4° – 55° at 1/10 peak

  • Highly efficient optics for perfect color mixing

  • Minimal scattered light

  • Encapsulated optical system

  • Individual LED control – Single pixel control

  • Sparkle channel for dynamic effects

  • Multiple layers with independent patterns can be stacked on top of each other

  • Countless color and pattern combinations

  • Separate CTC channel

  • Color temperature accuracy +/- Green shift (Black Body Shift)

  • High-resolution, steplessly variable dimmer 0–100%

  • Color-accurate dimming

  • Electronic strobe with pulse and random effects

  • Basic color temperature of the spotlight infinitely variable: 2700 K, 3200 K, 4200 K, 5600 K, 6000 K, 6500 K, 7000 K or 8000 K as well as variable from 2000 K to 12000 K

  • 3 phase extra strong stepping motors

  • Precise, very fast and silent movement

  • Quick, quiet zoom (maximum angle change 2.3° – 55° in 0.5 s)

  • 540° pan / 234° tilt

  • USITT DMX-512, RDM

  • Ethernet interface with Art-Net, sACN and Kling-Net

  • Wireless DMX / RDM Lumen Radio CRMX TiMo

  • Bluetooth, Wifi

  • Mini USB for software update

  • LCD display with function keys and battery buffer, electronically rotatable

  • Stand-alone mode, master/slave function

  • Built-in DMX analyser

  • Robust, roadworthy design

  • Individually changeable LEDs

  • Fan control for almost noiseless operation, 29 dB(A)

  • Neutrik 5pin XLR IN/OUT

  • RJ45 IN/OUT network socket

  • Power IN/OUT

  • 5pin IN/OUT socket (prepared for battery operation)

  • 2 Omega brackets with Original Camloc® fasteners for quick and convenient installation in any position, with four different fastening options

  • Optional: Diagonal omega bracket for two additional mounting possibilities

  • Max. power consumption 300 VA

  • Input voltage range 100 V–240 V, 50/60 Hz

  • Total heat dissipation (calculated): 1,024 BTU/hr

  • Dimensions: B 331 x D 243 x H 445 mm

  • Weight: 9,8 kg

  • CASE46 Amptown double flight case

  • CASE47 Amptown 4-compartment flight case

  • CASE48 Amptown 6-compartment flight case

  • BLOB02 Omega bracket standard

  • BLOB03 Diagonal omega bracket

Image 5.jpeg
Image 4.jpeg

Maximum zoom (54°)

Minimum zoom (6.5°)

Sparx9_Zoom_homogene_Ausleuchtung.mp4
Sparx9_Zoom_Streulicht.mp4

Uniform illumination

Beams optimised for scattered light

M18_Wassereffekt.mp4

Framing

The M18 Profile is equipped with a special theatre framing blades with short apertures, which enable very high setting angles combined with minimal light loss. Each blade can be independently adjusted in position and angle and can be inserted over almost the entire usable range with the maximum angle of +/- 30°. An advantage that allows you to work much faster, more precisely and more flexibly and makes it much easier to deflect extreme lighting angles.

M18_Modul_130_Grad_drehbar.mp4
M18_Blenden_gradgenau_schliessend.mp4
M18_max_Einschub.mp4
M18_Blenden_30_Grad_drehbar.mp4

Blades can be pushed in the same distance

Accurately positionable

Module +/- 65° rotatable

Each blade approx. +/- 30° rotatable
