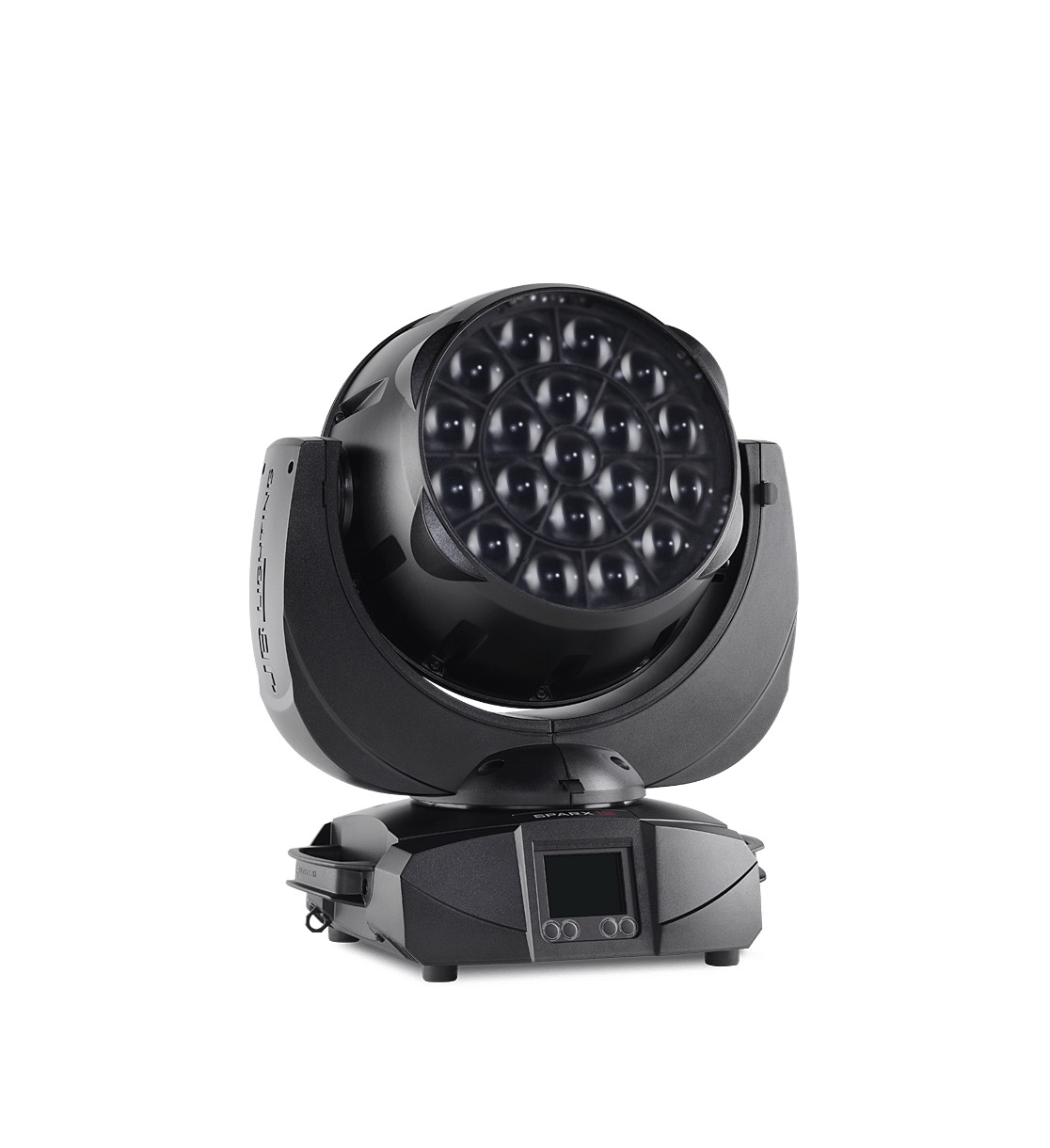

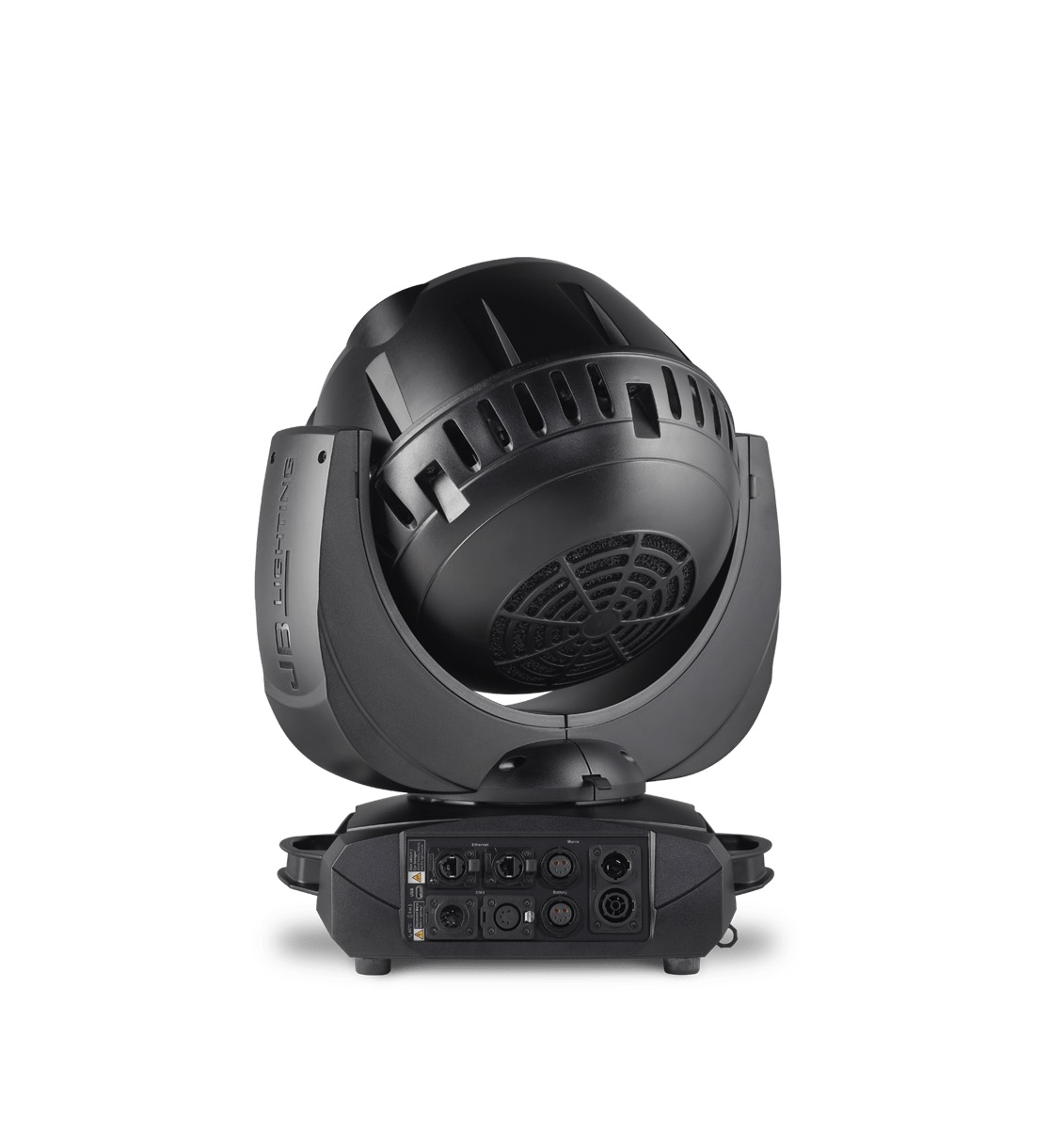

SPARX 12

 Twin Zoom Washbeam

This "little one" has it all

Sparx 12

High Performance, Beam, Twin Zoom

.....Just Brilliant

01 / 02

  • 19 RGBW high-performance LEDs of 40 W each, up to 10,500 lm Output

  • > 20.000 h life time

  • Flicker-free operation, camera mode: 100, 120 and 600 Hz

  • TwinZoom system: Zoom range 3,2° – 55° (1:17,2)

  • Highly efficient optics for perfect color mixing

  • Individual LED control – Single pixel control

  • Sparkle channel for dynamic effects

  • Multiple layers with independent patterns can be stacked on top of each other

  • Countless color and pattern combinations

  • Separate CTC channel

  • Optimised color mixing behaviour

  • High-resolution, steplessly variable dimmer 0–100%

  • Color-accurate dimming

  • Electronic strobe with pulse and random effects

  • TwinZoom effects: Multicolor beams and innovative beam shapes

  • Basic color temperature can be selected: 2700 K, 3200 K, 4200 K, 5600 K, 6000 K, 6500 K, 7000 K or 8000 K

  • 3 phase extra strong stepping motors

  • Precise, very fast and silent movement

  • 540° pan / 330° tilt

  • USITT DMX-512, RDM

  • Ethernet interface with Art-Net, sACN and Kling-Net

  • Wireless DMX / RDM Lumen Radio CRMX TiMo

  • Bluetooth, Wifi

  • Mini USB for software update

  • LCD display with function keys and battery buffer, electronically rotatable

  • Stand-alone mode, master/slave function

  • Built-in DMX analyser

  • Robust, roadworthy design

  • Individually changeable LEDs

  • Fan control for almost noiseless operation, 29 dB(A)

  • Neutrik 5pin XLR IN/OUT

  • RJ45 IN/OUT network socket

  • Power IN/OUT

  • 5pin IN/OUT socket (prepared for battery operation)

  • 2 Omega brackets with Original Camloc® fasteners for quick and convenient installation in any position, with four different fastening options

  • Max. power consumption 750 VA

  • Input voltage range 100 V–240 V, 50/60 Hz

  • Total heat dissipation (calculated): 2,560 BTU/hr

  • Dimensions: B 404 x D 265 x H 491 mm

  • Weight: 15,5 kg

  • CASE42 Amptown double flight case

  • CASE43 Amptown 4-compartment flight case

  • ZU0027 Beamshape rotatable

  • BLOB02 Omega bracket standard

Image 33.jpeg
Image 32.jpeg

Maximum zoom (55°)

Minimum zoom (2.3°)

Image 26.jpeg

TwinZoom effect

The Sparx 12 is not only head of the class as a motion artist, its luminosity and zoom range are also quite remarkable. It switches from very narrow to wide beam distribution just as fast as its head movements. The TwinZoom can be used to zoom the outer LED ring and the inner 7 LEDs separately and with different colors, greatly increasing the number of beam shapes and effects.

Sparx12_TwinZoom.mp4
Image 27.jpeg
