SPARX 9

WASHBEAM

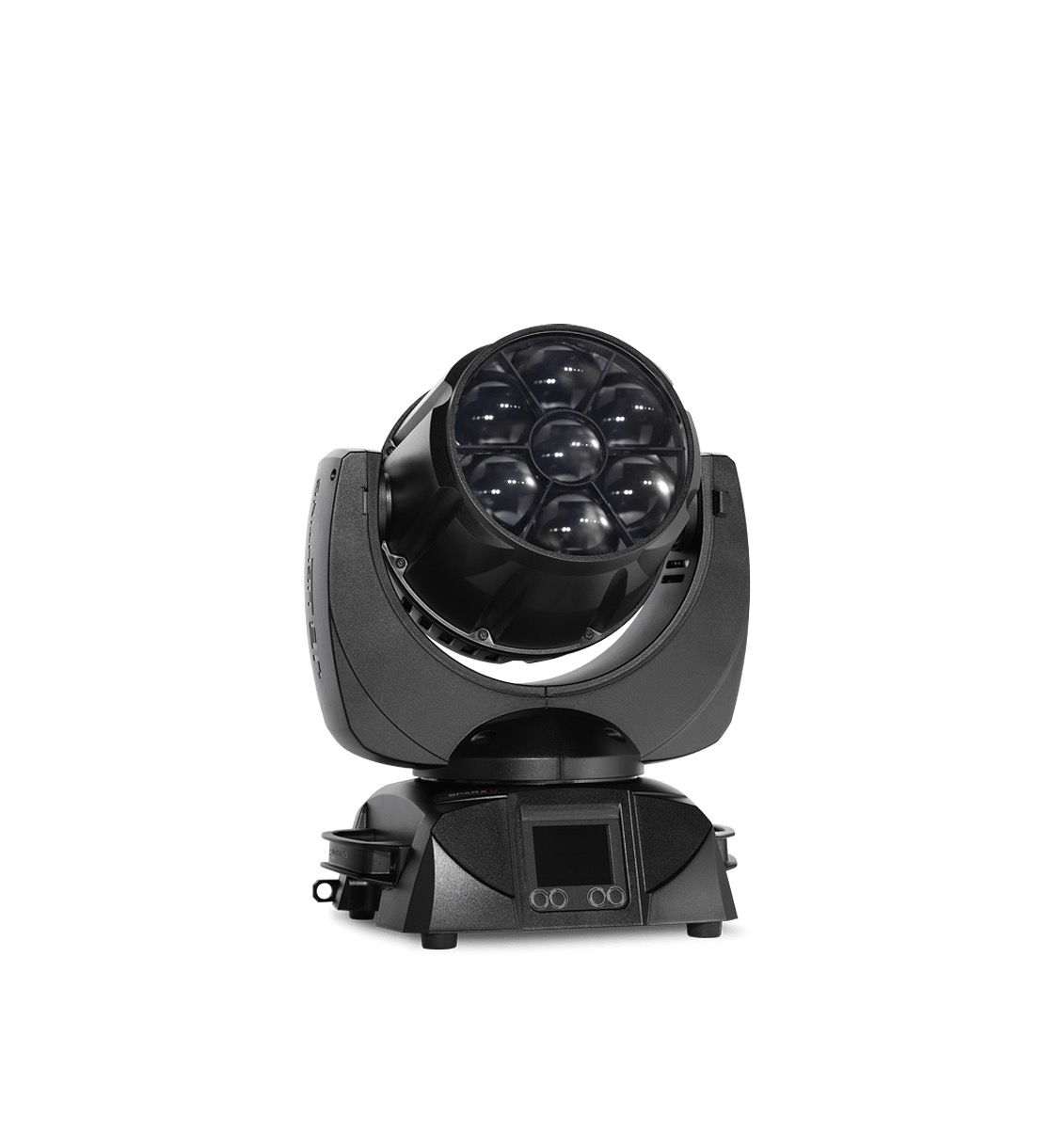

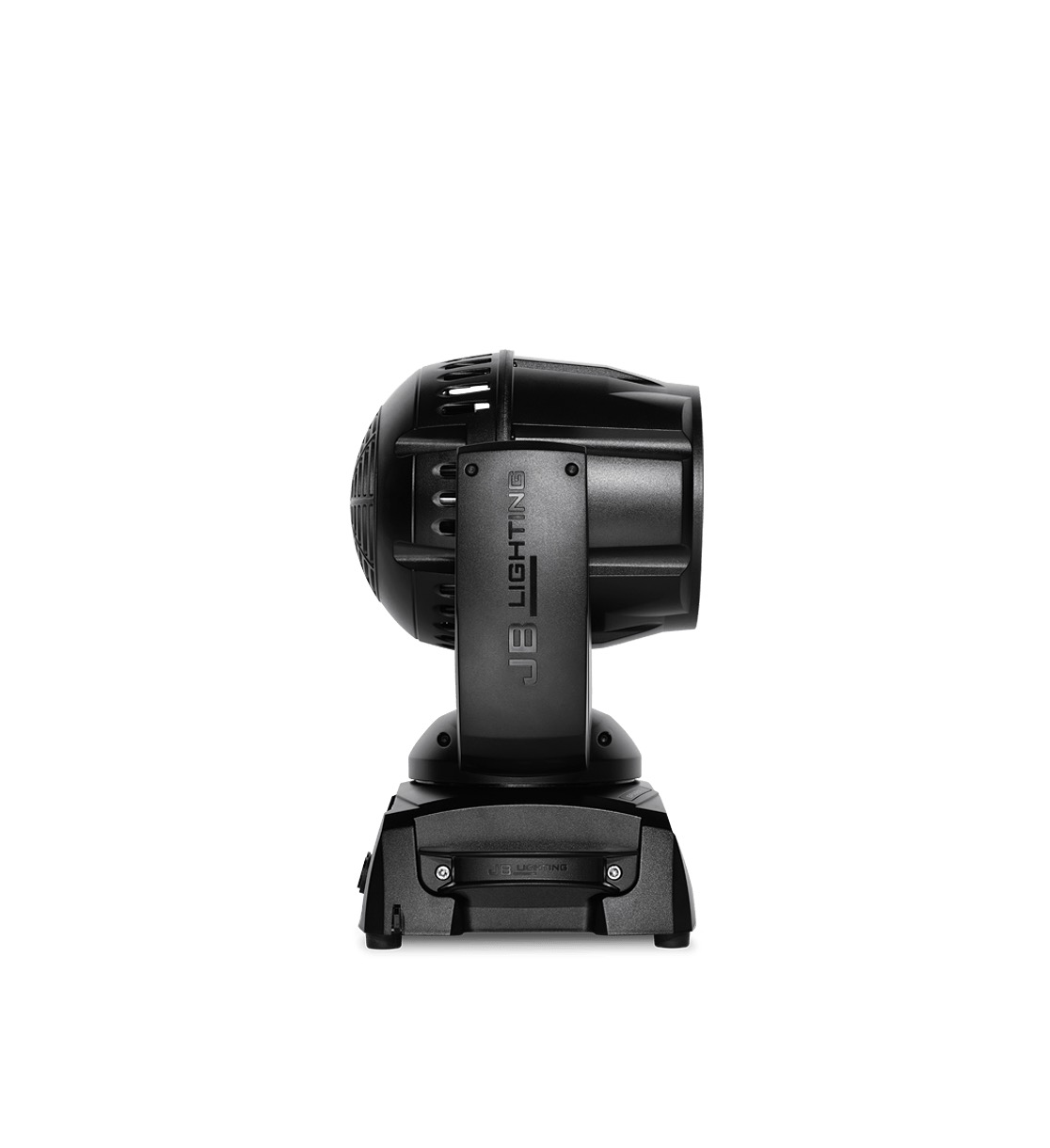

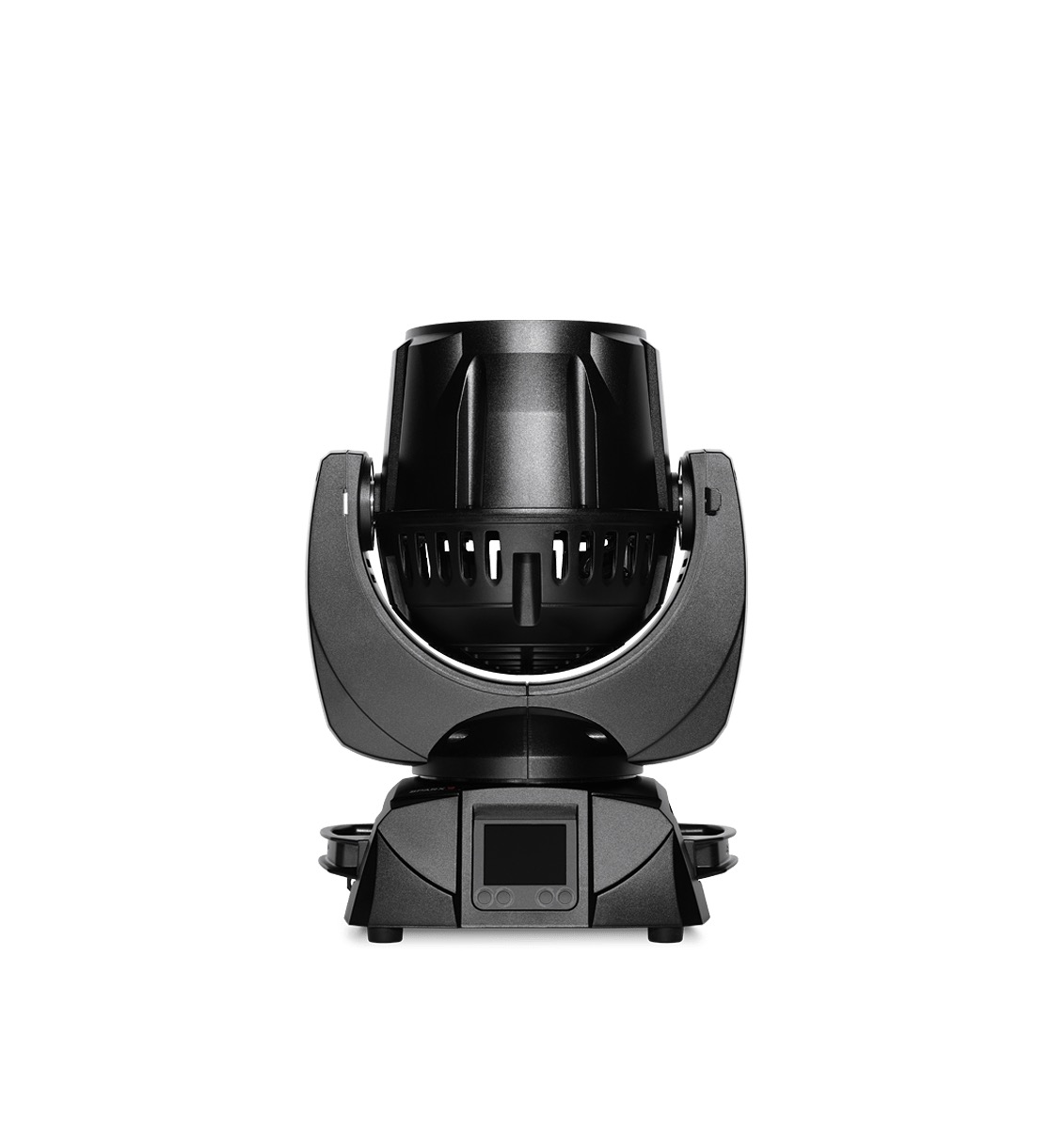

The

Sparx 9

is a

small compact, 9.8Kg pixel unit. Extremely fast and precise zoom.

Sparx 9

Compact, Pixel, Wash.

.....Just WOW

01 / 05

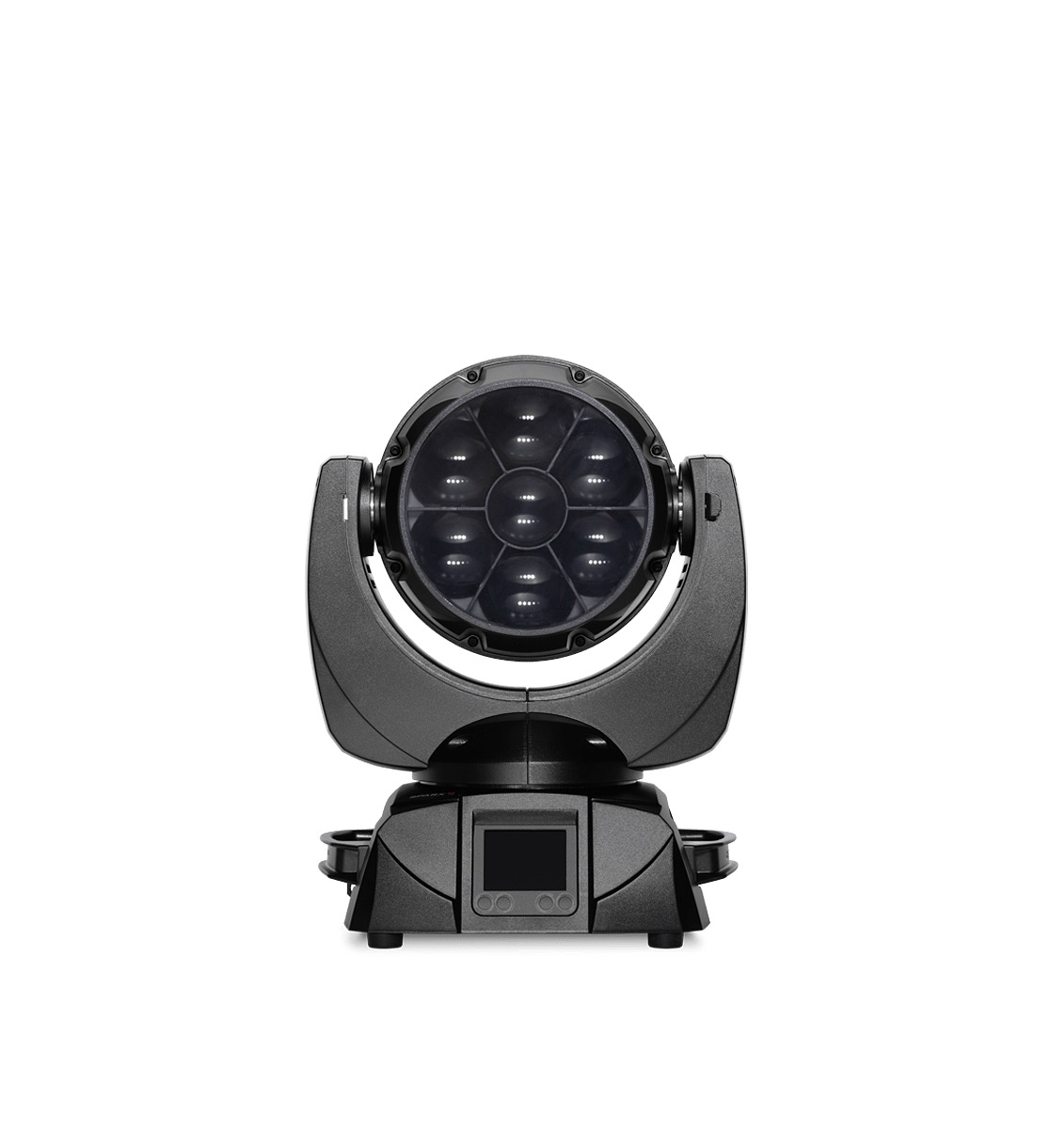

  • 7 RGBW high-performance LEDs of 40 W each, up to 3,500 lm output

  • > 20.000 h life time

  • Flicker-free operation, camera mode: 100, 120 and 600 Hz

  • Zoom range 2.3° – 55° (1:23.9), 2,3° – 33° at ½ peak; 4,4° – 55° at 1/10 peak

  • Highly efficient optics for perfect color mixing

  • Minimal scattered light

  • Encapsulated optical system

  • Individual LED control – Single pixel control

  • Sparkle channel for dynamic effects

  • Multiple layers with independent patterns can be stacked on top of each other

  • Countless color and pattern combinations

  • Separate CTC channel

  • Color temperature accuracy +/- Green shift (Black Body Shift)

  • High-resolution, steplessly variable dimmer 0–100%

  • Color-accurate dimming

  • Electronic strobe with pulse and random effects

  • Basic color temperature of the spotlight infinitely variable: 2700 K, 3200 K, 4200 K, 5600 K, 6000 K, 6500 K, 7000 K or 8000 K as well as variable from 2000 K to 12000 K

  • 3 phase extra strong stepping motors

  • Precise, very fast and silent movement

  • Quick, quiet zoom (maximum angle change 2.3° – 55° in 0.5 s)

  • 540° pan / 234° tilt

  • USITT DMX-512, RDM

  • Ethernet interface with Art-Net, sACN and Kling-Net

  • Wireless DMX / RDM Lumen Radio CRMX TiMo

  • Bluetooth, Wifi

  • Mini USB for software update

  • LCD display with function keys and battery buffer, electronically rotatable

  • Stand-alone mode, master/slave function

  • Built-in DMX analyser

  • Robust, roadworthy design

  • Individually changeable LEDs

  • Fan control for almost noiseless operation, 29 dB(A)

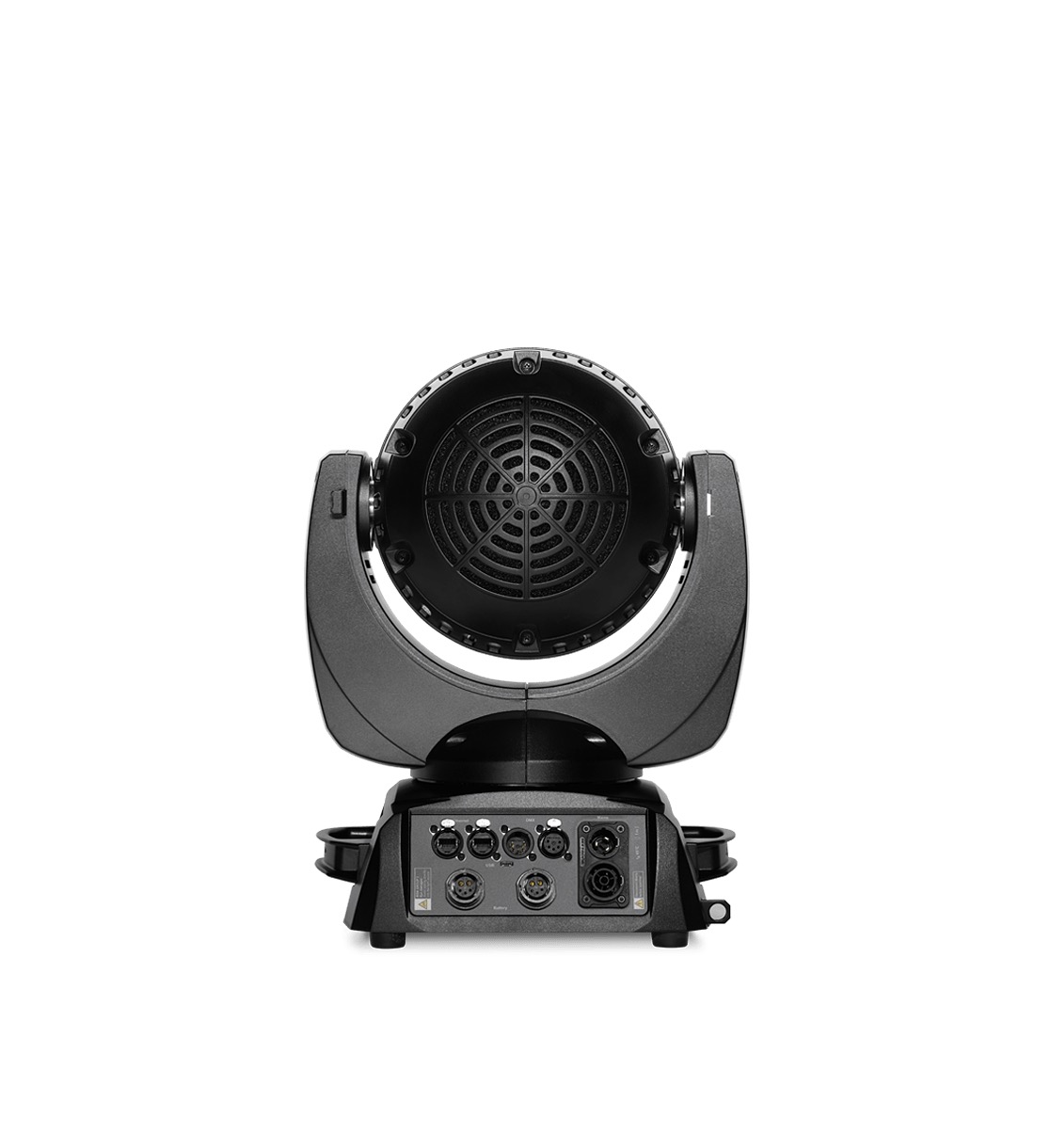

  • Neutrik 5pin XLR IN/OUT

  • RJ45 IN/OUT network socket

  • Power IN/OUT

  • 5pin IN/OUT socket (prepared for battery operation)

  • 2 Omega brackets with Original Camloc® fasteners for quick and convenient installation in any position, with four different fastening options

  • Optional: Diagonal omega bracket for two additional mounting possibilities

  • Max. power consumption 300 VA

  • Input voltage range 100 V–240 V, 50/60 Hz

  • Total heat dissipation (calculated): 1,024 BTU/hr

  • Dimensions: B 331 x D 243 x H 445 mm

  • Weight: 9,8 kg

  • CASE46 Amptown double flight case

  • CASE47 Amptown 4-compartment flight case

  • CASE48 Amptown 6-compartment flight case

  • BLOB02 Omega bracket standard

  • BLOB03 Diagonal omega bracket

Image 33.jpeg
Image 32.jpeg

Maximum zoom (55°)

Minimum zoom (2.3°)

Sparx9_Zoom_homogene_Ausleuchtung.mp4
Sparx9_Zoom_Streulicht.mp4

Uniform illumination

Beams optimised for scattered light

Supper fast movement

The Sparx 9 switches the zoom angle from 2.3° – 55° in just 0.5 seconds, putting it at the top of the JB pixel washers. It is generally in a class of its own when it comes to speed. The way it changes position, color and zoom quickly, precisely and dynamically is truly impressive and establishes even more scope for creating further fast-paced highlights in lighting design.

Sparx9_Pan-Tilt_Zoom.mp4
Sparx9_Pan-Tilt-Bewegung.mp4
Sparx9_Zoomwechsel.mp4
